Robinson Helicopter R22 BETA accident near Maricopa, Arizona, June 6, 2024
On June 6, 2024 at about 11:00 pm local time, a 2003 Robinson Helicopter R22 BETA, registered N7514V, was substantially damaged in an accident near Maricopa, Arizona (Ak-Chin Regional Airport). It was an instructional flight under general aviation rules (Part 91). No one was hurt; 2 people were on board or involved. The weather was visual conditions (good weather).
The NTSB's probable cause their words, unchanged
The flight instructor’s unstabilized approach during an autorotation that resulted in hard landing.
Source: NTSB aviation accident database, copy made October 5, 2026. Docket and reports at the NTSB.
What the record shows
- Date
- June 6, 2024 · about 11:00 pm local time
- Place
- Maricopa, Arizona · Ak-Chin Regional Airport · map
- Type
- Accident
- Injuries
- No one was hurt; 2 people were on board or involved.
- Weather
- visual conditions (good weather)
- Aircraft
- Robinson Helicopter R22 BETA, built 2003 · all R22 BETAs on the register
- Registration
- N7514V · no longer on the register · serial 3512
- Damage
- Substantial damage
- Flight
- Instructional flight · general aviation rules (Part 91)
The NTSB's narrative final · quoted from the NTSB record
The flight instructor of the helicopter reported that, he initiated the autorotation from about 1,000 ft above ground level (agl). As they were descending toward the runway, the instructor noted his airspeed at 55 kts and a high rate of descent. He began the flare, but the rate of descent continued, so he attempted a power recovery. The helicopter continued to descend, and he raised the collective, to cushion the landing. The helicopter landed hard, resulting in substantial damage to the fuselage, tailboom and vertical stabilizer. The flight instructor reported that there were no preaccident mechanical malfunctions or failures with the helicopter that would have precluded normal operation.
The complete narrative as the NTSB published it. The NTSB's docket holds the report as a PDF and any photographs, statements and other documents from the investigation.
The factual record from the NTSB's investigation tables, in plain English
What happened, in order
- Autorotation Hard landing defining event
The NTSB's findings
- Personnel issues › Task performance › Use of equip/info › Use of equip/system › Instructor/check pilot
- Aircraft › Aircraft oper/perf/capability › Performance/control parameters › Descent/approach/glide path › Not attained/maintained
Flight instructor
- Certificate: flight instructor, commercial pilot
- Ratings: instructor: helicopter; instrument: helicopter; rotorcraft: helicopter
- Flight time: 1,172 hours in all; 1,172 in this make and model; 126 in the last 90 days; 34 in the last 30 days; 1,092 as pilot in command; 877 on instruments
- Last flight review: September 26, 2022
- Medical certificate: Class 2 (without waivers/limitations)
- Seat: rgt
- Injury: no injuries
Dual student
- Certificate: commercial pilot
- Ratings: instrument: helicopter; rotorcraft: helicopter
- Flight time: 204 hours in all; 204 in this make and model; 30 in the last 90 days; 6 in the last 30 days; 124 as pilot in command
- Last flight review: May 13, 2024
- Medical certificate: Class 1 (with waivers/limitations)
- Seat: left
- Injury: no injuries
The aircraft
- Airframe total time: 13,296.7 hours
- Last inspection: 100-hour inspection, May 31, 2024
- Maximum gross weight: 1,370 lb
- Seats: 2
- Landing gear: fixed
- Engine: Lycoming O-360-J2A (piston); 0 hours total
The flight
- Departed from: CHD Chandler AZ at 10:15 pm
- Flight plan: none
- Runway 22, 4,751 ft by 50 ft
- A second pilot was aboard
Weather at the time
- Light: daylight
- Wind: from 290° at 11 knots, gusting 15
- Visibility: 10 statute miles
- Sky: clear
- Temperature: 108°F (42°C), dew point 41°F (5°C)
- Altimeter: 29.75 inHg
- Observation at 2:56 pm from KCGZ, 8 miles away
Weather report (METAR): KCGZ 062156Z AUTO 29011G15KT 10SM CLR 42/05 A2975 RMK AO2 SLP055 T04220050 PNO $
Injuries
| Fatal | Serious | Minor | None | |
|---|---|---|---|---|
| Flight crew | 2 |
Photographs from the investigation 2 pictures from the NTSB's docket, as the NTSB released them

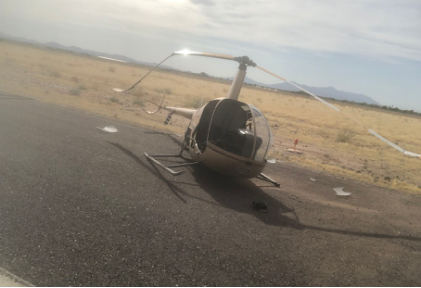

Photograph 1 – View of damage to main rotor blades

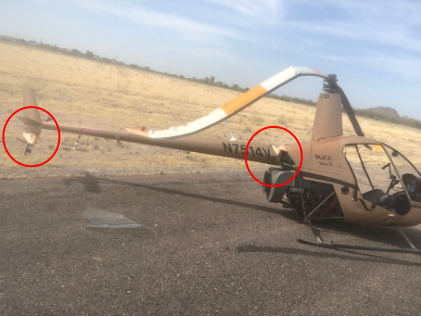

Photograph 2 – View of damage to tail boom and vertical stabilizerThe NTSB's photographs with the NTSB's captions, at screen size. Open a picture to see it full size or to report one that should not be shown.
Documents from the investigation the NTSB's docket: the evidence folder behind the report
4 documents, released by the NTSB on December 2, 2024. View them here, or download them; the NTSB redacts some personal details before release, and this site shows the NTSB's own titles rather than its file names.
| # | Document | What it is | |
|---|---|---|---|
| 1 | Pilot/operator Aircraft Accident Report, NTSB Form 6120.1 | PDF, 11 pages | View Download |
| 2 | Record of Phone Conversation - CFI | PDF, 1 page | View Download |
| 3 | Pilot Rated Student, NTSB Form 6120.1 | PDF, 11 pages | View Download |
| 4 | Photo Array | PDF, 3 pages · our copy | View Download |
The same docket at the NTSB · documents without a copy here are fetched from the NTSB when you open them.
Everything on this page comes from the NTSB's public records. The narrative, probable cause and findings are the NTSB's own words; the coded tables behind the report are written out in plain English, with pilots' ages, home towns and medical details left out. The documents and photographs are the NTSB's docket, shown as the NTSB released them. This site's own text never names anyone involved. A preliminary report can change; the final report usually follows one to two years later, and the page is refreshed when it does.
