Cirrus Design CORP SR22T incident near Tulsa, Oklahoma, August 3, 2024
On August 3, 2024 at about 6:00 pm local time, a 2014 Cirrus Design CORP SR22T, registered N825JC, was substantially damaged in an incident during standing (engine(s) not oper) near Tulsa, Oklahoma (Tulsa International Airport). It was a ferry flight under general aviation rules (Part 91). No one was hurt; 1 person was on board or involved. The weather was visual conditions (good weather).
The NTSB's probable cause their words, unchanged
The mechanic’s improper installation of the alternator wiring connections, which resulted in electrical arcing and thermal damage to the airplane.
Source: NTSB aviation accident database, copy made October 5, 2026. Docket and reports at the NTSB.
What the record shows
- Date
- August 3, 2024 · about 6:00 pm local time
- Place
- Tulsa, Oklahoma · Tulsa International Airport · map
- Type
- Incident
- Injuries
- No one was hurt; 1 person was on board or involved.
- Weather
- visual conditions (good weather)
- Aircraft
- Cirrus Design CORP SR22T, built 2014
- Registration
- N825JC · registry record · serial 0752
- Damage
- Substantial damage
- Flight
- Ferry flight · general aviation rules (Part 91)
The NTSB's narrative final · quoted from the NTSB record
An airframe and powerplant mechanic removed and replaced the airplane’s engine, which included rewiring the two alternators, and performed an engine run-up without incident. A pilot then performed a short ferry flight, also without incident. After parking the airplane at the destination airport and shutting down the engine, the pilot saw smoke coming from the engine compartment. The pilot exited the airplane, looked into the louvered vents under the engine compartment, and saw electrical arcing and smoke, but did not see any fire. The airplane battery and associated wiring sustained thermal damage. The airplane’s composite firewall sustained substantial damage due to thermal damage. The mechanic who performed the engine replacement took a photograph of the alternator wire connections before removing the original engine, which he used as a reference when rewiring the alternator following the engine replacement. The photograph showed the correct wire connections, but those connections were different than those at the time of the accident. Postincident examination of the airplane revealed that the alternator wire connections were not done in accordance with the airplane manufacturer’s maintenance manual, which resulted in electrical arcing and substantial thermal damage to the airplane.
The complete narrative as the NTSB published it. The NTSB's docket holds the report as a PDF and any photographs, statements and other documents from the investigation.
The factual record from the NTSB's investigation tables, in plain English
What happened, in order
- Aircraft maintenance event during prior to flight
- Fire/smoke (non-impact) during standing (engine(s) not oper) defining event
- Attempted remediation/recovery during standing (engine(s) operating)
The NTSB's findings
- Personnel issues › Task performance › Maintenance › Installation › Maintenance personnel
- Aircraft › Aircraft systems › Electrical power system › Alternator › generator drive sys › Incorrect service/maintenance
- Aircraft › Aircraft systems › Electrical power system › Alternator › generator drive sys › Damaged/degraded
Pilot
- Certificate: commercial pilot
- Ratings: multi-engine land; single-engine land; instructor: airplane multi-engine; instructor: airplane single-engine; instrument: airplane
- Medical certificate: Class 2 (without waivers/limitations)
- Seat: none
- Injury: no injuries
The aircraft
- Airframe total time: 1,138 hours
- Last inspection: annual inspection, October 28, 2023
- Seats: 5
- Landing gear: fixed
- Engine: Continental Aerospace TSIO-550-K1B (piston); 0 hours total
The flight
- Departed from: RVS Tulsa OK
Weather at the time
- Light: daylight
- Temperature: 0°F (-18°C), dew point 0°F (-18°C)
Injuries
| Fatal | Serious | Minor | None | |
|---|---|---|---|---|
| Flight crew | 1 |
Photographs from the investigation 6 pictures from the NTSB's docket, as the NTSB released them

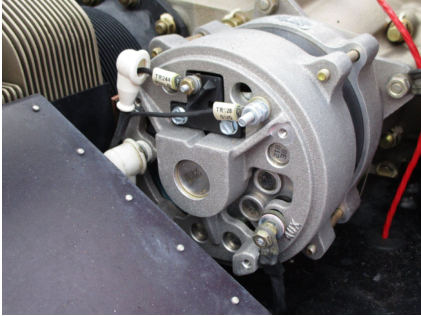

Photograph 1 – Alternator Installation at Time of the Accident

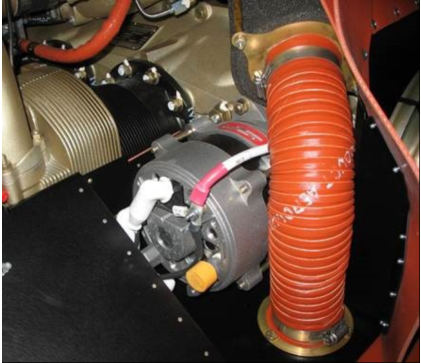

Photograph 2 – Alternator Installation in Accordance with the Cirrus Maintenance Manual Models SR22 and SR22T

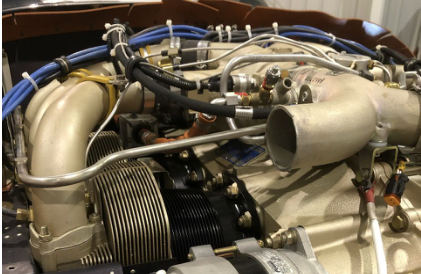

Photograph 3: Photo Prior to Engine/Alternator Removal

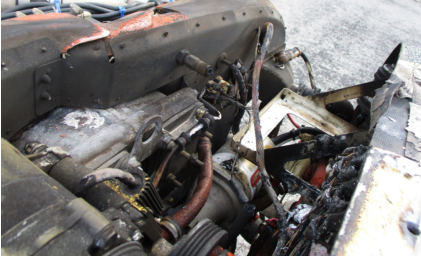

Photograph 4: Engine Compartment Thermal Damage

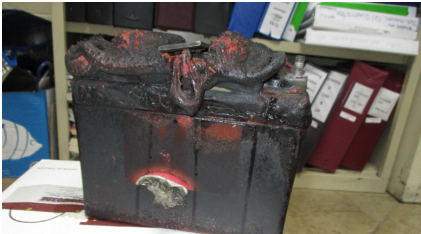

Photograph 5: Damage to Battery

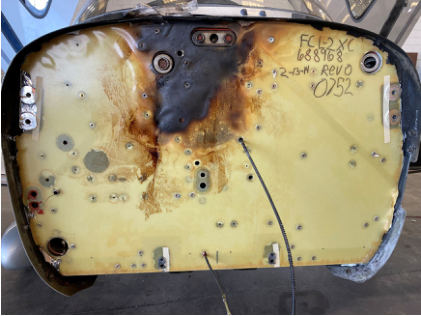

Photograph 6: Firewall DamageThe NTSB's photographs with the NTSB's captions, at screen size. Open a picture to see it full size or to report one that should not be shown.
Documents from the investigation the NTSB's docket: the evidence folder behind the report
6 documents, released by the NTSB on January 2, 2025. View them here, or download them; the NTSB redacts some personal details before release, and this site shows the NTSB's own titles rather than its file names.
| # | Document | What it is | |
|---|---|---|---|
| 1 | Pilot's Statement | PDF, 1 page | View Download |
| 2 | Record of Conversation - Mechanic | PDF, 2 pages | View Download |
| 3 | Maintenance Records | PDF, 14 pages | View Download |
| 4 | Cirrus Airplane Maintenance Manual Models SR22 and SR22T | PDF, 3 pages | View Download |
| 5 | Photos | PDF, 7 pages · our copy | View Download |
| 6 | Statement of Party Representatives to NTSB Investigation | PDF, 15 pages | View Download |
The same docket at the NTSB · documents without a copy here are fetched from the NTSB when you open them.
Everything on this page comes from the NTSB's public records. The narrative, probable cause and findings are the NTSB's own words; the coded tables behind the report are written out in plain English, with pilots' ages, home towns and medical details left out. The documents and photographs are the NTSB's docket, shown as the NTSB released them. This site's own text never names anyone involved. A preliminary report can change; the final report usually follows one to two years later, and the page is refreshed when it does.
